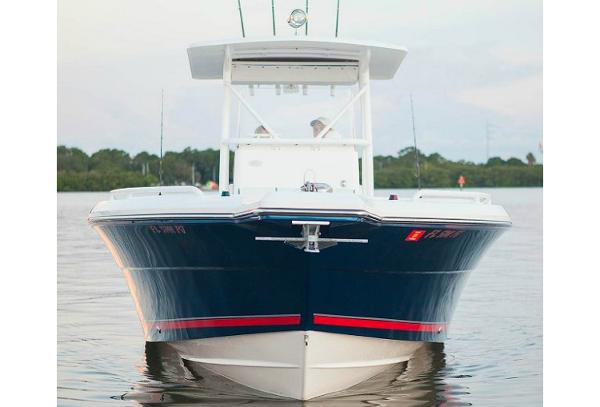

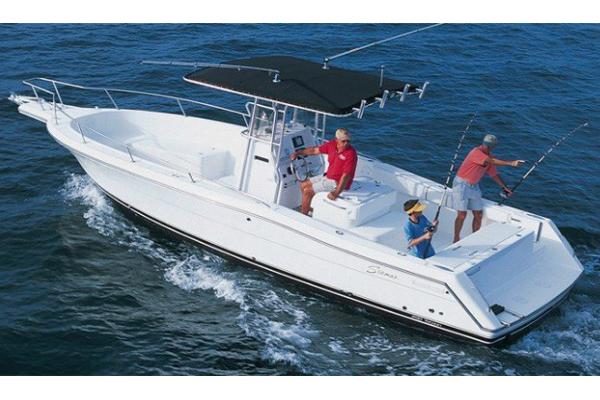

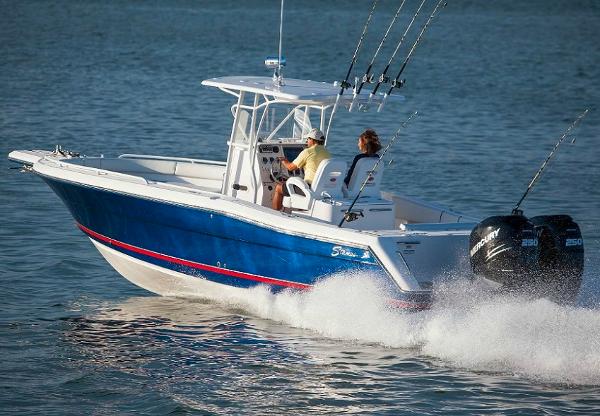

Stamas 317 Tarpon

  • Boat Summary
  • Full Details

Boat Description

Inboard and Ourboard configurations available.




Boat Details
Beam 10 ft 4 inDraft Board/Drive Up 1 ft 7 in
Dry Weight 6300 lbHull Material Fiberglass
Hull Shape Modified VeeFuel Capacity 302 gal
Length Overall 33 ft 7 inNumber of Heads 1
Water Capacity 20 gal
More Boats from this Seller


Detailed Specs
Max Bridge Clearance 6 ft 10 in

Detailed Specifications

EXCLUSIVE STAMAS STANDARDS

• Yamaha Twin 250 FS
• Anchor Windlass w/rode, chain & anchor
• Battery Charger 20 Amp
• Bow Bolsters
• Console Footrests
• Electric Porcelian Head
• Water Pressure System w/Transom Shower
• Hard T-Top w/ 4 Rod Holders, SpreaderLights



HULL

• Bilge pumps, (2) 1500 GPH automatic

• Bonding system w/zinc anode

• Bow eye, stainless steel

• Bow thruster (I/B only)

• Hand laid fiberglass construction

• Stern eyes, stainless steel (O/B only)

• Through hull fittings, stainless steel above waterline

• Through hull fittings, bronze below waterline

• Trim tabs, hydraulic

• Vinylester resin skin coat

• Warranty, 7 year limited



DECK & COCKPIT

• Anchor rope locker w/hawse pipe

• Anchor storage, auxiliary

• Battery (2), marine hi-crank (w/factory installed power option)

• Battery select switch (w/factory installed power option)

• Bow rail, stainless steel

• Casting platform, convertible with table pedestal

• Cleats, 10” bow and stern (pop-up at stern)

• Cleats, spring line

• Cockpit, self-bailing

• Compass

• Cushions, removable aft cockpit bolsters

• Deck hardware, through bolted stainless steel

• Dive platform

• Freshwater pressure system (20 gal.)

• Fuel filters, (2) water separating

• Fuel tanks, (2) heavy gauge anodized aluminum w/crossover system

• Hand laid fiberglass construction

• Hull and deck liner, one piece fiberglassed and mechanically fastened to hull

• Leaning post/bait station with rod holders

• Lighting, International navigation

• Non-skid, molded on all walking and standing surfaces

• Pulpit, molded fiberglass w/roller assembly and chain locking chock

• Rubrail, heavy duty PVC with stainless steel trim

• Storage well, in sole 352 Qt. (330L)

• Storage well, aft, removable

• Transom door, fiberglass

• Swim ladder, 3 step SS w/hand rails

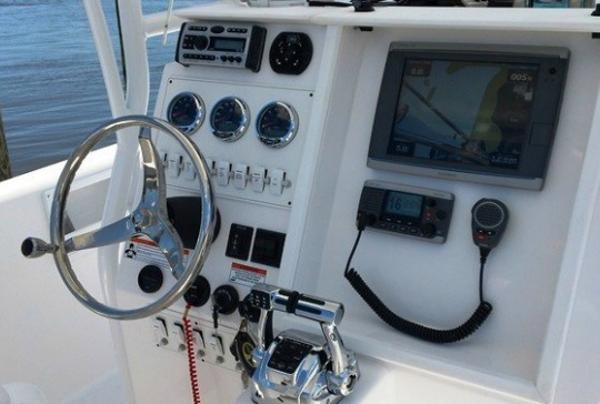

CONSOLE

• Dash panel, illuminated with waterproof rocker switches and circuit breakers

• Electronics mount, flush in dash

• 12V accessory outlet

• Drink holders

• Electronics mount, lockable flush in dash

• Fiberglass, one piece construction w/stainless steel grab rail

• Head compartment, stand-up, lockable

• Horn, electric

• Lights, courtesy

• Seat, console, forward facing with cushions

• Steering, hydraulic

• Steering wheel, stainless steel

• Vents (2) opening ports

• Windshield, molded 3/8” acrylic



FISHING SUPPORT

• Baitwell, leaning post, w/circulating system (O/B) 199 Qt. (189L)

• Baitwell, leaning post, w/circulating system (I/B) 150 Qt. (142L)

• Baitwell, transom w/circulating system, 72 Qt. (68L)

• Fishbox, aft 170 Qt. (169L), insulated w/overboard drain

• Fishbox, (2) forward, 347 Qt. each (329L each) insulated with overboard drain

• Freshwater system with sink

• Rod holders, (4)

• Rod storage, gunwale (6)

• Tackle box, 3 drawer

• Washdown, raw water
