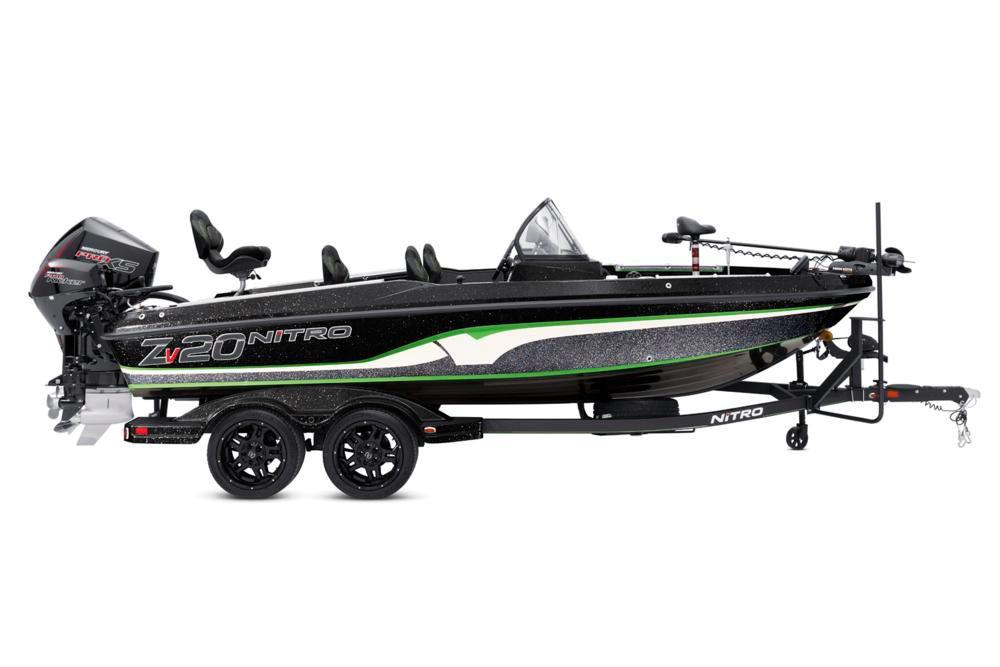

Nitro ZV20

Request Price

The NITRO® ZV20 is a formidable 300-horsepower-class Deep V fishing machine with the brute strength and fishability you need to conquer big waters. It features a 5” touchscreen with one-touch command of boat controls—including the innovative new First Fish function, which fills and recirculates the livewell with one touch. A handy key fob controls many of the same functions.

Built with crucial input from walleye pros Keith Kavajecz and Gary Parsons, the ZV20 is designed to find and catch walleye, but it makes a great bass- or trout-fishing platform as well. And it’s factory rigged with a Mercury® outboard up to 300 horses, a 36-volt Minn Kota® trolling motor, a Lowrance® fishfinder and a custom-matched trailer with GALVASHIELD® Impact protection.

Additional Details

  • Length:20' 2"
  • Length: 20' 2"
  • Beam: 8' 4"
  • Bottom width: 6' 5"
  • Max. recommended HP: 300 HP
  • Fuel capacity: 55 gal.
  • Max. person capacity: 6 persons
  • Max. person weight: 1100 lbs.
  • Max. person, motor & gear weight: 2200 lbs.
  • Interior depth: 25"
  • Transom height: 26"
  • Deadrise: 18 degrees
  • Draft: 18"
  • Average dry weight: 2900 lbs.
  • Average package weight: 5500 lbs.
  • Package height: 7' 2"
  • Package width: 8' 6"
  • Towing length: 27' 11"
  • Storage length: 24' 1"

Standard Features

Comfort, Convenience & Peace of Mind

  • NMMA® certified
  • Flotation meets or exceeds NMMA® & U.S. Coast Guard requirements
  • EPA-compliant fuel system
  • Gunnels designed to maximize interior space & fishing room
  • 3 stainless steel drink holders
  • 4 stainless steel pull-up cleats
  • Stainless steel bow & stern eyes
  • Anti-fatigue matting below bow & cockpit carpet
  • Fold-down 4-step stainless steel reboarding ladder
  • Passenger grab handle
  • Fire extinguisher
  • Horn

Livewell System

  • Bow 10-gal. (37.85 L) insulated baitwell w/removable bucket
  • Aft 26-gal. (98.42 L) insulated Guardian™, anti-slosh & rotomolded livewell w/removable divider, bait bucket & rounded corners
  • Two 500 GPH (1,892.71 LPH) aerator/fill pumps w/timers (1 for baitwell, 1 for livewell)
  • Two 750 GPH (2,839.06 LPH) recirculator pumps w/timers (1 for baitwell, 1 for livewell)
  • Pump-out systems (baitwell & livewell)
  • Oxygen generators (baitwell & livewell)
  • Livewell lid latching to keep lid closed at speed & in rough conditions
  • Insulated aluminum lids w/welded corners

Trolling Motor

  • Minn Kota® Terrova® 36V, 112-lb. (50.80 kg) thrust, 60" (1.52 m) composite shaft, foot-control trolling motor w/Bluetooth® & Universal Sonar 2
  • Trolling motor pedal recess

Console

  • Lowrance® Elite-7 Ti2 Combo RAM®-mounted fishfinder w/GPS
  • NEW touchscreen switch panel w/1-touch boat controls including First Fish, Nite Mode, master power, trim, lighting, bilge, livewells & more
  • NEW key fob remote w/First Fish, Nite Mode, master power on/off & trim
  • First Fish feature fills & recirculates livewell w/1 touch for stress-free livewell prep
  • Hydraulic steering w/custom tilt wheel
  • Heavy-duty molded, tinted windscreens
  • Custom-molded port & starboard modular consoles w/finished bottom
  • Oversized carpeted, lockable port glovebox w/dual access
  • Below-console footrest w/storage
  • Port & starboard below-console shelves
  • SmartCraft® link gauges w/Mercury® monitor
  • Side-mounted LED courtesy light
  • Space to mount additional electronics

Interior

  • Bike seat w/hydraulic pedestal
  • Attwood® Centric X folding molded fishing seat w/hydraulic pedestal
  • Attwood® Centric X driver & passenger seats
  • Stainless steel bow & aft rails (port & starboard)
  • Bow port & starboard lockers w/lift assists
  • Bow port cooler w/removable tray
  • Bow & aft lockable storage compartments
  • 3-level center rod locker for rods up to 8' (2.44 m) w/tapered rod tubes to protect rod tips
  • Between-console foldout storage drawer w/two 3600 tackle boxes
  • Extra-large integrated port net holder
  • Passenger rod ramp w/rod handle organizer & hold-down strap
  • Port & starboard midship insulated storage boxes designed to accept tackle trays
  • Midship in-floor storage for batteries
  • Starboard tool holder
  • 2 lift-out, molded aft storage boxes that will each accept seven 3700 tackle trays
  • Easy access to rigging & pumps
  • Insulated aluminum lids w/welded corners
  • 24-oz. (.68 kg) plush, marine-grade, cut pile carpet on decks & floor
  • Room to RAM®-mount additional electronics at bow
  • Stainless steel lockable latches

Performance

  • Deep V NVT™ performance hull w/Rapid Planing System™ (RPS™) transom
  • 10" (25.4 cm) R&R Design Slidemaster adjustable jack plate; 8" (20.32 cm) w/225HP motor
  • Transom designed for Kicker motor application
  • Rigging tube
  • Stainless steel propeller

Construction & Exterior

  • 100% composite deck core w/superior thermal stability & strength-to-weight ratio
  • Deck & hull chemically bonded & mechanically fastened
  • Gelcoated stringer/liner system
  • Foam-filled hull for optimal buoyancy & safety
  • Full-width fiberglass-encapsulated composite transom
  • Hand-laid, heavy-duty performance hull w/reinforced sides

Electrical

  • Bow navigation lights integrated into gunnels
  • Bow panel w/trolling motor receptacle, navigation light, anchor light & trim switches
  • Redundant automatic bilge pump system w/dual 1,600 GPH (6,056.66 LPH) pumps
  • Heavy-duty Interstate® starting battery
  • 3 heavy-duty Interstate® trolling batteries
  • 4-bank, 35-amp onboard battery charger w/exterior receptacle
  • 6-gauge trolling motor wiring w/50-amp circuit breaker
  • Automotive style, labeled fuse panel w/cover
  • Manual LED-lighted bow storage compartments
  • E-Start emergency jump start system
  • Master power switch
  • Ventilation fan system in bow storage
  • Waterproof Deutsch gauge plugin connectors
  • Water/abrasion-resistant connectors
  • Console-mounted 12V outlet

Trailer

  • Custom-fit, tandem-axle NITRO® trailer powder-coated w/GALVASHIELD® Impact corrosion & chip protection for improved durability
  • 7-pin connector
  • 14" (35.56 cm) custom NITRO® aluminum wheels w/radial tires
  • Integrated boarding step w/safety handle for easier boarding/reboarding at bow while boat is on trailer
  • Surge disc brakes on both axles
  • All-welded rectangular GALVASHIELD® frame
  • Spare tire carrier w/matching spare tire
  • Space-saving swing-away tongue to reduce storage length
  • 1,500-lb. (680.39 kg) swing-up locking jack w/swivel wheel
  • Heavy-duty winch w/non-binding nylon strap & bow safety strap
  • Outboard motor support to reduce hull & transom stress while towing
  • Carpeted bunks & fender boards to protect hull
  • Submersible LED lights
  • Safety cables

Show More…

Find a Nitro Dealer Near You

Advertisement

Nitro ZV20 Specifications

Boat Details

Year
2020
Type
Power
Class
Bass
Length
20 ft 2 in
Fuel Type
Gas
Hull Material
Fiberglass

Measurements

LOA
20 ft 2 in
Beam
8 ft 4 in
Min. Draft
1 ft 6 in
Dry Weight
2900 lb
Deadrise at Transom
18°

Propulsion

Standard Engine

Number of Engines
1
Engine Type
Outboard

Accommodation

Max Passengers
6

Tanks

Fuel Tanks
55 gal

Other Details

Hull Shape
Deep Vee
Hull Warranty
Lifetime
Show More
