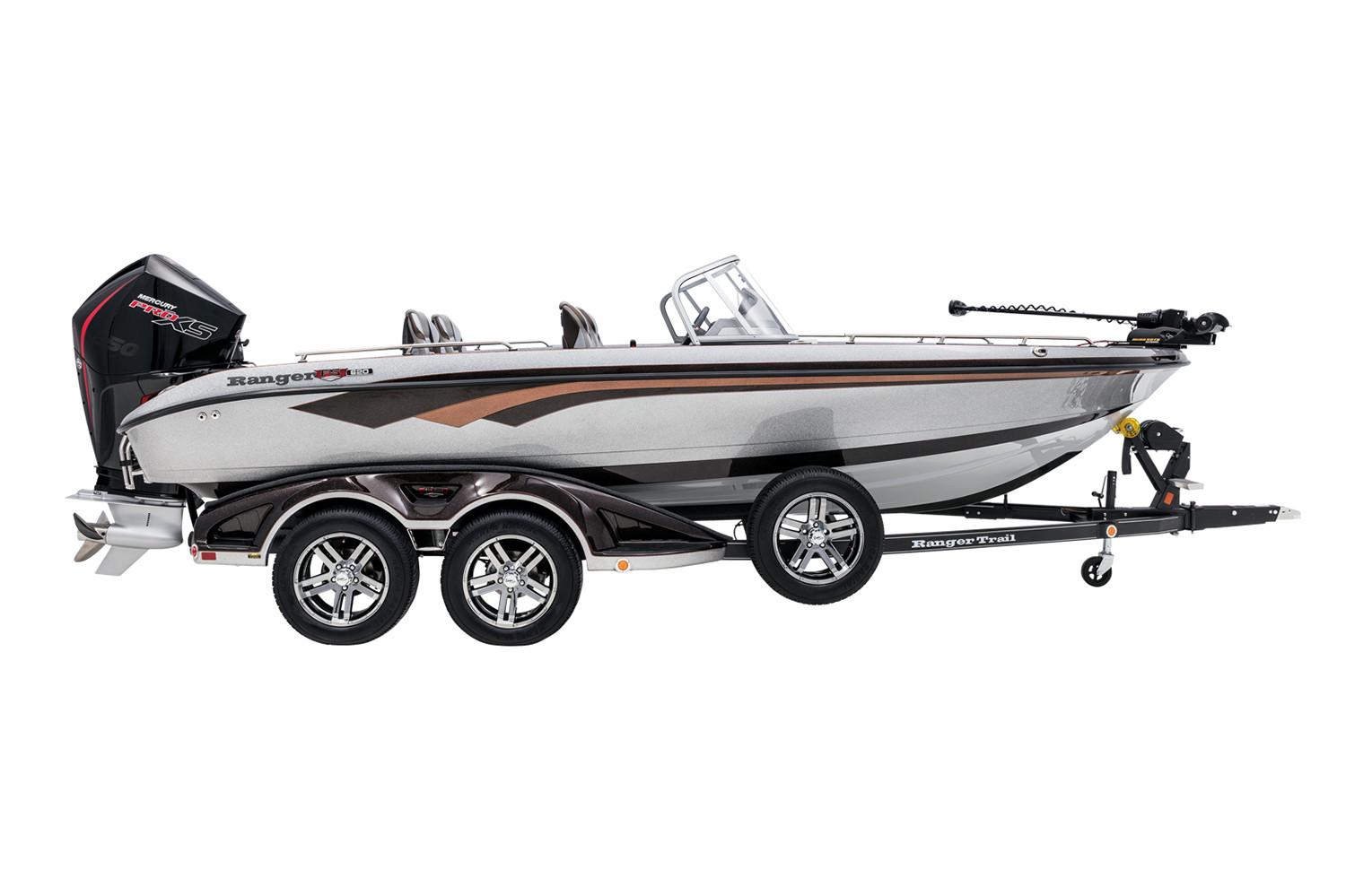

Ranger 620FS Ranger Cup Equipped

Request Price

Refined power, commanding tracking and smooth handling are hallmarks of the Ranger® 620FS Ranger Cup Equipped®. This all-around performance is delivered by way of an advanced hull design and extraordinary internal superstructure that gives the 620FS our legendary one-piece feel that’s complemented by high-end interior touches. Integrated tool and rod holders, stainless steel hardware, premium, hand-stitched SRS Soft-Ride Seating® seats and non-skid flooring accent the cockpit. The utmost in fishability is delivered by a monster rear livewell, an 8-foot, 6-inch rod box, front baitwell, ultra-stable beam and a wide-open layout. From there, this special edition comes with a 12" Lowrance unit at the console and 9" at the bow, a GPS-enhanced Minn Kota trolling motor and your own custom color palette. Day in and day out, the 620FS Ranger Cup Equipped gives you every advantage to hammer the fish and crush the waves.

  • All-out big water capability through advanced construction, hull design and interior layout
  • Skid-resistant flooring
  • Premium quality SRS Soft Ride Seating®
  • Matching Ranger Trail® trailer
  • Integrated measuring board and tool holders

Additional Details

  • Length:20' 7"
  • Hull Length: 20' 7"
  • Beam: 101"
  • Max. recommended HP: 250 HP
  • Engine Shaft Length: 25"
  • Inside Depth: 25"
  • Fuel capacity: 51 gal.
  • Livewell Capacity: 28 gal.
  • Baitwell Capacity: 7 gal.
  • Total Person, Motor, Gear: 2000 lbs.
  • Approximate Boat Weight: 2340 lbs.
  • Rod Box Length - Center Row 1: 8' 6"
  • Rod Box Length - Center Row 2: 8' 0"
  • Max. person capacity: 7 persons
  • Trailer GVWR: 5800 lbs.
  • Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate): 25' 3"
  • Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate): 23' 3"
  • Width On Trailer: 102"

Standard Features

Custom Details

  • Patented Power Ventilation Rod Storage™
  • Integrated tool holders / 32" measuring board
  • Recessed keel protector
  • Under-console storage shelves - port and starboard
  • Plano® storage under port console and passenger foot rest
  • Deck mounted rod holders
  • 44" stainless steel grab rails
  • Bow rails
  • Soft touch skid-resistant cockpit floor
  • Insulated cooler w/ gelcoat liner & drain
  • Integrated Drink Holders
  • Runnin' rod rack w/ handle grips
  • Retractable rod buckles
  • Rod storage w/ organizer
  • Integrated tackle organizer
  • Lockable storage compartments
  • Stainless steel seat bases
  • Gas spring lid assists
  • Custom colors, graphics & trim package
  • Remote drain plug

Power/Performance

  • Minn Kota® Ulterra 112 US2 iPilot 62" BT trolling motor
  • (3) trolling motor batteries
  • Cranking battery w/ holder
  • Power trim
  • Stainless Steel Prop
  • Flush remote throttle control
  • Pultruded transom / fiberglass stringers
  • High performance steering wheel
  • Teleflex Sea Star Pro® hydraulic steering (may vary with engine model and setback plate)
  • Recirculating aerated livewell and baitwell w/ filter screens, automatic timers and livewell pump-out
  • Integrated engine setback

Safety/Comfort

  • NMMA® certified
  • Upright, level flotation
  • Fire extinguisher & horn
  • Passenger glove box (dual console only)
  • Stainless steel tie cleats
  • Stainless steel bow / stern eyes
  • Walk-Thru Windshield
  • Passenger assist handles
  • Bilge pump (1) automatic (1) manual
  • Custom fitted premium marine upholstery - (4) all-weather SRS fold-downs: (2) w/ slide-swivel, (2) power pedestals
  • Boarding ladder
  • Skid-resistant material on bow

Trailer Features

  • Matching fiberglass fenders w/ step pads
  • Hydraulic surge disc brakes
  • Trailer parking brake
  • Ranger Trail® Cool Hub® lubrication system
  • Challenger wheel upgrade
  • Swing-away tongue
  • Center-swing jack
  • NMMA®/NATM certified
  • Retractable trailer tie-downs
  • Ranger® Boats Road Armor Equipped® trailer protectant
  • Torsion axles
  • LED lighting

Electronics

  • Lowrance® HDS-9 LIVE @ bow & HDS-12 LIVE @ console
  • Dual Pro® on-board charger, 15 x 4
  • Battery Gauge (w Dual Pro® ONLY)
  • Rear charger receptacle
  • Keyless digital ignition
  • Custom gauges, digital switches & digital bow switches (speed, tach, trim, fuel, water pressure, volt, temp)
  • Wiring harness w/ master breaker
  • Electrical system disconnect w/ jumper switch
  • Solid-state re-settable switching with 30A master breaker
  • Heavy duty 6-gauge trolling motor wiring w/ 60-amp breaker
  • Navigation lights
  • 12V DC power receptacle with USB
  • LED cockpit, compartment and livewell light package
  • LED folding stern light
  • Courtesy light(s) @ console

Show More…

Find a Ranger Dealer Near You

Advertisement

Ranger 620FS Ranger Cup Equipped Specifications

Boat Details

Year
2020
Type
Power
Class
Freshwater Fishing, Bass
Length
20 ft 7 in
Fuel Type
Gas
Hull Material
Fiberglass

Measurements

LOA
20 ft 7 in
Beam
8 ft 5 in
Dry Weight
2400 lb

Propulsion

Standard Engine

Engine Type
Outboard

Accommodation

Max Passengers
7

Tanks

Fuel Tanks
51 gal

Other Details

Hull Shape
Modified Vee
Hull Warranty
Lifetime
Show More
