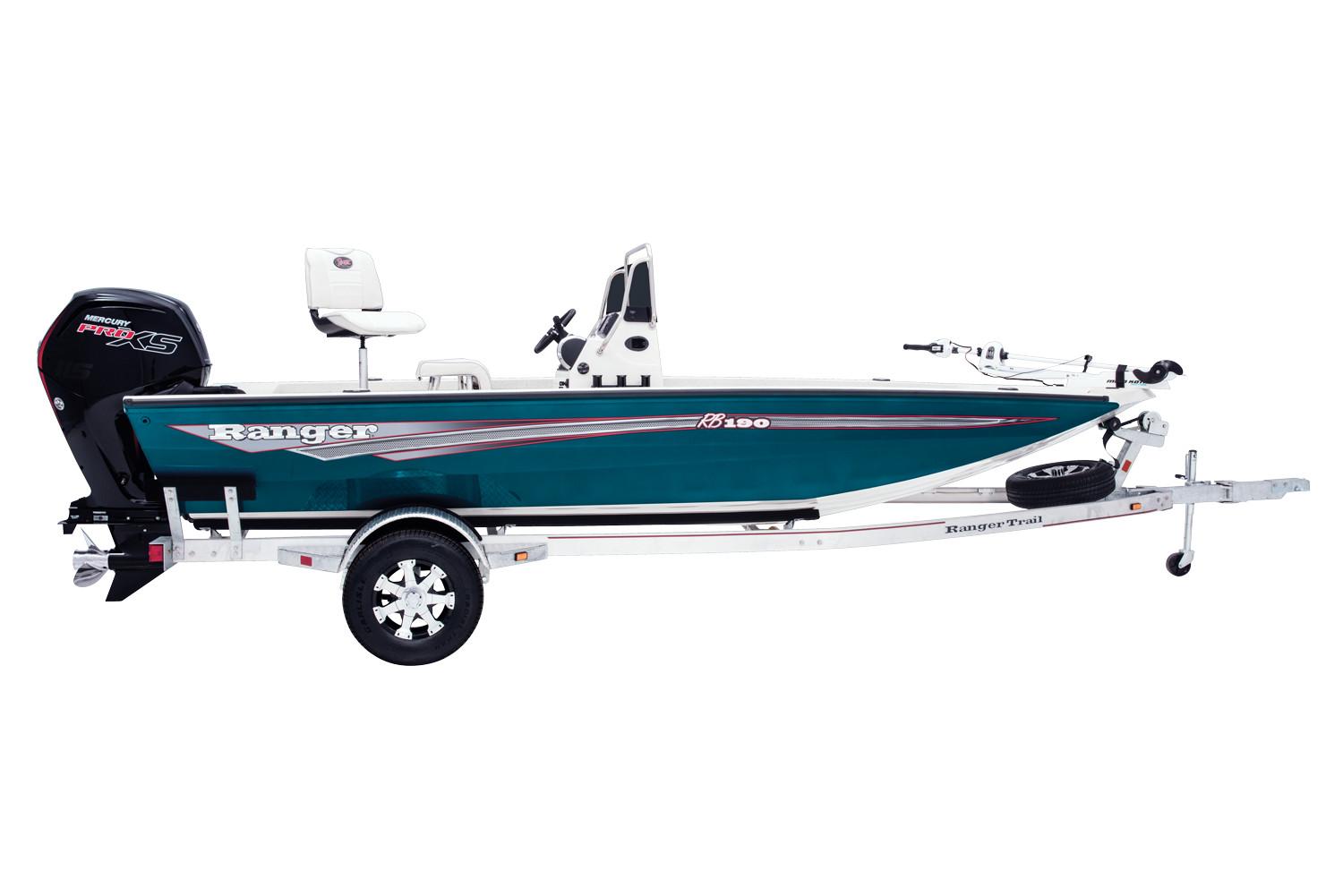

Ranger RB 190 Fisherman w/ set-back

Request Price

Built for bayous, bays and backwaters, the Ranger® RB190 is a shallow-drafting workhorse that’s ready to take on inshore species with saltwater-savvy touches from the all-aluminum trailer to the grippy, easy-to-clean Rawhide™ interior coating and pad-bottom hull for a smooth ride and responsive handling. Dual rear jump seats add deck space when down or seating when up and a padded driver’s leaning post flips down to expose a livewell that’ll accommodate tournament-size reds. The wide, stable and shallow-drafting design complements the 115-horsepower rating and slices through chop with nimble and economical performance. BayStar® hydraulic steering and a binnacle-mount throttle on the fiberglass console keep you confidently in command. Huge gear storages, twin 8-foot rod boxes and integrated cup and tool holders accentuate the angler-friendly layout and make days on the water easy in this lake, bay and backwater master.

  • Wide-open layout and broad, stable beam
  • Dry, shallow-drafting hull
  • Fold-down rear seats
  • Rugged, skid-resistant Rawhide™ interior coating
  • Aluminum-framed Ranger Trail® trailer

Additional Details

  • Length:18' 8"
  • Hull Length: 18' 8"
  • Beam: 96"
  • Max. recommended HP: 115 HP
  • Engine Shaft Length: 20"
  • Side Depth: 22"
  • Hull Thickness: 0.1"
  • Bottom Width: 68"
  • Fuel capacity: 21 gal.
  • Approximate Boat Weight: 1150 lbs.
  • Rod Box Length - Port: 8' 0"
  • Rod Box Length - Starboard: 8' 0"
  • Max. person capacity: 5 persons
  • Trailer GVWR: 2950 lbs.
  • Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate): 24' 8"
  • Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate): 23' 2"
  • Width On Trailer: 95"

Standard Features

Custom Details

  • Custom fitted marine upholstery: aluminum leaning post, (1) fold down, (1) bike, dual jump Seats
  • Painted gunnel, hull side and bottom
  • Metallic urethane paint w/ custom Ranger® graphics
  • Rawhide™ coating on gunnel & interior
  • Integrated Drink Holders
  • Rear casting deck
  • Windshield w/ stainless steel handrails

Electronics

  • 6 gauge trolling motor wiring
  • Minn Kota® RT70 / B-52" Hand Edge Mt trolling motor
  • Lowrance® Hook-2 4 depthfinder @ console
  • On-board charger, 6X1
  • 12V power outlet (USB included)
  • Auto bilge pump
  • Removable Navigation Lights

Power/Performance

  • Available w/ a wide range of factory rigged outboards
  • Cranking battery w/ holder
  • BayStar® hydraulic steering (may vary w/ engine model and/or setback plate)
  • High performance steering wheel
  • Binnacle mounted flush remote throttle control
  • Power trim
  • Bow trim & navigation switches
  • Aerated livewell w/ timer, removable divider
  • Custom fiberglass console w/ tach, speed, fuel gauges & easy touch switching
  • Water pressure & trim gauges
  • Optional hydraulic setback plate

Safety/Comfort

  • Aluminum transom w/ pultruded fiberglass reinforcement
  • Built-in horn assembly
  • Stainless steel boarding ladder
  • NMMA® certified
  • Tie Cleats (4)
  • Stainless steel bow / stern eyes
  • All aluminum floors & decks
  • Passenger grab handles
  • Lockable Storage
  • Upright, level flotation
  • Rod storage w/ rod tubes & console rod rack
  • 1 1/2" Strakes on Bottom
  • 5052 Aluminum
  • Foam-filled one-piece construction

Trailer Features

  • Custom built Ranger Trail® trailer/single axle SM2950
  • Aluminum trailer frame w/ galvanized cross-members
  • Matching spare tire w/ aluminum wheel
  • Swing jack
  • Custom swing-away tongue
  • NMMA®/NATM certified
  • Integrated load guides
  • Waterproof lights

Show More…

Find a Ranger Dealer Near You

Advertisement

Ranger RB 190 Fisherman w/ set-back Specifications

Boat Details

Year
2020
Type
Power
Class
Aluminum Fish, Freshwater Fishing
Length
18 ft 8 in
Fuel Type
Gas
Hull Material
Aluminum

Measurements

LOA
18 ft 8 in
Beam
8 ft
Dry Weight
1150 lb

Propulsion

Standard Engine

Number of Engines
1
Engine Type
Outboard

Accommodation

Max Passengers
5

Tanks

Fuel Tanks
21 gal

Other Details

Hull Shape
Modified Vee
Hull Warranty
Lifetime
