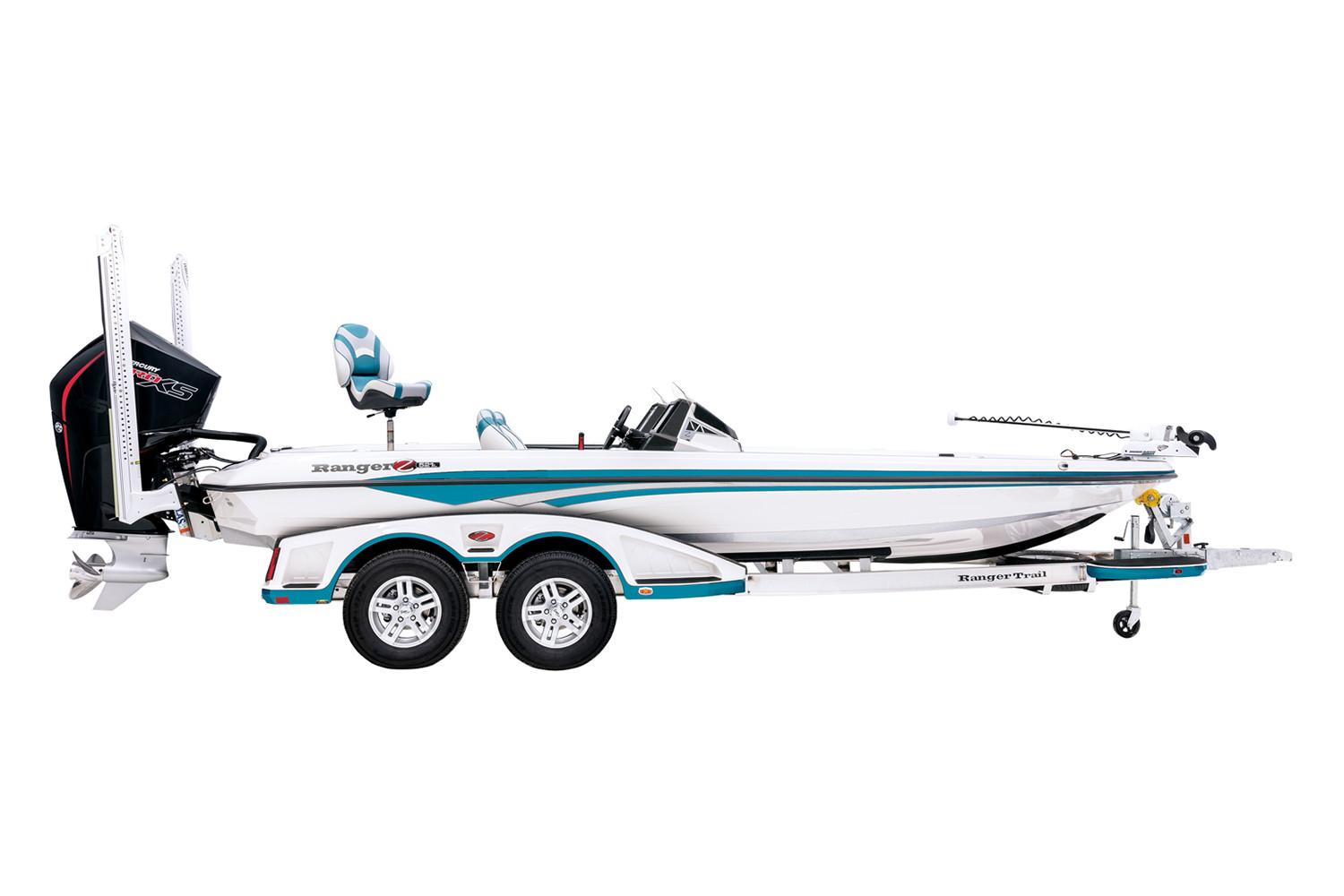

Ranger Z521L Intracoastal

Request Price

Ranger’s newest saltwater model is designed for those who chase all things finned in all types of water. A commanding and proven hull delivers smooth and speedy jaunts across flats while the broad and ultra-stable beam keep confidence underfoot at all times. Custom, hand-stitched Ranger® SRS Soft-Ride Seating® and a skid-resistant floor add a touch of class and comfort to this all-out fishing machine. The Z521L Intracoastal comes standard with a host of saltwater-ready features from the aluminum-framed Ranger Trail® trailer to extra-deep drainage channels and triple-lip seals on every storage box. A world of foam flotation fills every available inch of the hull for a rock-solid platform and unshakable solidity. No matter what you’re chasing, the Z521L Intracoastal delivers.

  • Legendary Ranger® performance and handling in a saltwater-friendly package
  • Non-skid flooring
  • Upright, level flotation
  • Durable marine-grade seating
  • Stainless steel hardware

Additional Details

  • Length:21' 8"
  • Hull Length: 21' 8"
  • Beam: 98"
  • Max. recommended HP: 300 HP
  • Engine Shaft Length: 20"
  • Inside Depth: 21"
  • Fuel capacity: 51 gal.
  • Livewell Capacity: 31 gal.
  • Total Person, Motor, Gear: 1700 lbs.
  • Approximate Boat Weight: 1950 lbs.
  • Rod Box Length - Port: 8' 0"
  • Rod Box Length - Center Row 1: 9' 0"
  • Rod Box Length - Center Row 2: 8' 6"
  • Rod Box Length - Starboard: 7' 0"
  • Max. person capacity: 5 persons
  • Trailer GVWR: 5400 lbs.
  • Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate): 26' 7"
  • Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate): 24' 7"
  • Width On Trailer: 102"
  • Draft: 16"

Standard Features

Custom Details

  • Integrated rod storage
  • Storage under front & rear deck
  • Gelcoated lockable storage boxes
  • Insulated cooler w/ gelcoat liner & drain
  • Molded-in driver/ passenger footrests
  • Trim package featuring Chrome and Aluminum Accents
  • Runnin rod rack w/ strap
  • Rod storage & tackle organizer
  • Stainless steel seat bases
  • Integrated Drink Holders
  • Stainless steel gas spring lid assists
  • Custom colors, graphics & trim package
  • Two front deck retractable rod straps
  • Ranger® tournament measuring board
  • Remote drain plug
  • Power Ventilation Rod Storage™
  • Stainless steel compression lid locks


  • On-board Dual Pro™ charger, 15 x 3
  • Keyless ignition / digital switching @ bow & console
  • Custom multi-function gauges - speed, tach, water pressure, trim, fuel, volt, temp
  • Heavy duty 6 gauge trolling motor wiring w/ 60 amp breaker
  • Integrated LED bow navigation lights
  • 12V DC power receptacle with USB
  • Courtesy light(s) @ console(s)
  • LED courtesy light(s)
  • Compartment & livewell light package
  • Solid state resettable switching w/ 30A master breaker
  • Removable LED stern light
  • Corrosion resistant wiring harness w/ breakers


  • Available w/ a wide range of precision matched outboards
  • Minn Kota® RT Fortrex 80 62" 24V trolling motor
  • Cranking battery w/ holder
  • High performance stainless steel prop
  • Flush-mounted throttle control w/ power trim
  • Pultruded fiberglass transom & fiberglass stringers
  • Setback plate
  • High performance steering wheel
  • Recirculating aerated livewell w/ removable divider, filter screens, automatic timer
  • Dual livewell lids
  • Venturi Air & livewell pump-out system
  • Integrated engine setback
  • Teleflex Sea Star Pro® hydraulic steering (may vary w/ engine model & setback plate)
  • Electrical system disconnect / jumper switch
  • Recessed trolling motor foot pedal


  • NMMA® certified
  • Upright, level flotation
  • Fire extinguisher & horn
  • Soft-touch skid-resistant interior
  • Stainless steel bow / stern eyes
  • Stainless steel tie cleats
  • Skid resistant material on bow
  • Bilge pump (1) automatic (1) manual
  • SRS bucket seats w/ center storage, (1) bike seat w/ pro pole, (1) SRS all-weather fold down w/ power pedestal
  • Adjustable driver seat
  • Boarding ladder
  • Heavy duty rubrail
  • Stainless steel grab handles
  • Tinted windshields

Trailer Features

  • Aluminum Trailer Frame
  • Aluminum wheels w/ matching spare tire & wheel
  • Hydraulic surge disc brakes- tandem axle w/ brakes
  • Ranger Trail® Cool Hub® lubrication system
  • Matching fiberglass fenders
  • Matching fiberglass trailer step
  • Torsion axles
  • Center swing jack
  • Swing-away tongue
  • NMMA®/NATM certified
  • LED lighting
  • (2) Back-up lights

Show More…

Find a Ranger Dealer Near You


Ranger Z521L Intracoastal Specifications

Boat Details

Bass, Saltwater Fishing
21 ft 8 in
Fuel Type
Hull Material


21 ft 8 in
8 ft 2 in
Dry Weight
1950 lb


Standard Engine

Engine Type


Max Passengers


Fuel Tanks
51 gal

Other Details

Hull Shape
Modified Vee
Hull Warranty
Show More
