Hull and Deck Laminate: Fiberglass and epoxy resin laminates with carbon fiber reinforcements and variable density foam core vacuum bagged and post-cured at 80° C. Substantial laminate reinforcements in the hull bottom and mast area to accommodate loads from keel fin, mast and shrouds. Local laminate reinforcements at winches, rudder bearings and all highly loaded fittings. A500 Core-cell is used in the majority of the structure, replaced with higher strength A600 Core-cell in the hull at the keel framing area extending to the slamming areas forward. A800 Core-cell inserts used for high load fittings, with high compressive strength Penske board inserts under winches and halyard stoppers.

Keel, Mast and Longitudinal Frames (bunkfronts): Biaxial glass and epoxy vacuum laminates with carbon unidirectional fiber structural flange reinforcements. Single piece frame constructed in a female tool and bonded into the hull with SP Systems Spa-bond toughened epoxy adhesive.

Hull to Deck Bond: Reinforced laminate overlap at sheer radius bonded with SP Systems Spa-bond toughened epoxy adhesive.

Structural Bulkheads: Biaxial glass and epoxy vacuum laminates on PVC Core. Carbon fiber twill reinforcement laminate added on main structural bulkheads.

Non-structural Interior Components: Fiberglass cloth and epoxy vacuum laminates on PVC foam core.

Keel: For optimum upwind performance, the keel is a high aspect, mid-bulb fin design. The fin is built in high strength cast iron, and sheathed in fiberglass for precise foil shape and corrosion protection. Fin attachment is in an AC yacht style box for structural integrity and ease of attachment. Sleek 2800 lb lead bulb is fastened and faired to the fin.

Rudder: The rudder is large for upwind performance, maneuverability and control in any situation. The blade is a high aspect, high lift/drag ratio design, balanced for good "feel" without overpowering the driver. An incredibly strong carbon fiber and epoxy pre-preg stock is required for the high speeds when planing downwind. The blade is built with a carbon fiber vacuum laminate over foam core. Rudder bearings are JP3 Type 3 self-aligning bearings. Anodized aluminum rudder-head with composite tiller completes the steering system.

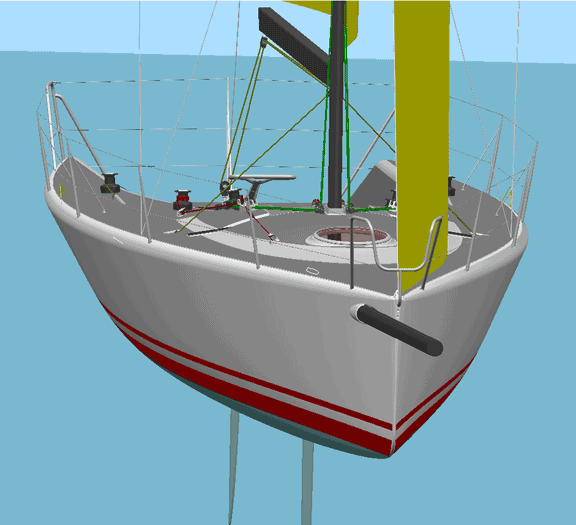

Deck Layout: An effective deck layout is uncomplicated, reliable and allows the crew to gain the most performance from the yacht. Ergonomics of cockpit design, winch size and placement, and control systems are designed to allow normal sized men and women to manage the yacht and sails.
Type 316 st stl pulpit & pushpits w/integral eyes for spinnaker sheet block attachment

Type 316 st stl stanchions in flush bases - (6) with brace legs,
St stl 1/19 lifelines per Category 2 ORC Safety Recommendations for Offshore Sailing
Composite shroud chainplates with high-strength st stl pins and bushings
Type 316 st stl fittings for forestay ram and backstay purchase
Flush mounted acrylic deckhouse windows
Low-profile companionway hatch w/composite drop boards
LEWMAR Size 22 low-profile round foredeck hatch
(4) LEWMAR Size 32 Atlantic opening cockpit portlights

Winches installed w/G10 backing plates; all fasteners are type 316 st stl.
HARKEN B45.2STR Primaries
HARKEN B40.2STA Mainsheet/Secondary
HARKEN B40.2STA Halyard

HARKEN Deck Hardware:
Forestay & jib tack line sheaves
Foreguy/code zero downhaul
Jib track and fairleads
Jib car-puller purchases
Jib in-hauler purchases
Halyard turning blocks
Boom vang purchase and cleats
Spinnaker afterguy blocks and padeyes
Mainsail Cunningham
Spinnaker sheet barber-haulers
Mainsheet purchase
Mainsheet traveler, car and control purchases
Spinnaker sheet blocks
Backstay purchase
SPINLOCK XAS Halyard Clutches
SPINLOCK XTS Spinnaker Sheet Clutches (side-mounted)
SPINLOCK XAS Backstay & Mainsheet Clutches
NAVTEC A250-SE-012 forestay ram
Molded Toe-rails on foredeck
Molded Foot-braces in Cockpit

Interior Accommodations: The interior arrangement is designed for practical use for racing, with the ability to be outfitted for weekend cruising. Primary structural elements are carefully integrated with the accommodations to minimize weight and maximize interior volume. Many components may be removed for the racing configuration to save weight and wear and tear on "cruising" amenities.

Forward V-berth: Structural berth platform with Beckson hatches installed flush to access stowage under.
3" thick foam cushion covered in standard fabric w/polyester mesh backing.

Head Compartment: Enclosed head compartment with curved interior partition and door.
Head sink basin & cabinet w/stowage bins
Marine head

Hanging Locker: Large hanging locker w/ stl bar & mesh fabric zipper door - opposite head compartment

"Saloon": Spacious design providing comfortable seating for 6 adults.
Teak cabin sole oil finished. Two hard-bottomed berths w/ 3" thick foam cushions covered in standard fabric w/polyester mesh backing - integral lee cloths provided.

Galley: Adjacent to companionway hatch for ventilation and standing headroom (5?-9")
Port side has the galley sink basin w/base and stowage locker outboard. Space provided for various stove options including; st stl gimbaled 2 butane canister burner racing stove or gimbaled 2-burner stove and oven or Microwave Oven. Starboard side has a built-in icebox cabinet and locker outboard for electrical switch panel and to accept navigation electronics.

Companionway / Engine Box: Molded engine box housing with integral steps. Top of box arranged to provide seating for galley or icebox/nav station. Composite engine box completely removable to provide full access to engine. Engine box housing insulated with foam/lead soundproofing. Inspection port provided to access engine oil dipstick.

Aft Berths: Standard arrangement has (4) adjustable aluminum frame pipe berths w/polyester mesh bottoms and 1.5" thick cushions covered in standard fabric. Optional cruising arrangement has removable panels and cushions to provide double berths P&S w/ 3" thick foam cushions covered in standard fabric w/polyester mesh backing. House batteries located P&S forward and outboard of the longitudinal frame. Large locker on centerline with mesh fabric zipper doors for personal gear. Engine water-lock and starting battery located under this locker.

Lazarette: Large flush hatch in cockpit sole provides access to aft interior space under cockpit sole. Although this area will be kept empty for racing, it provides an enormous stowage space in "cruising mode" - large enough for an inflatable, awnings, BBQ, etc.

Plumbing
Marine head w/bladder holding tank with deck plate for pump-out and y-valve for overboard discharge
Fresh-water foot pumps for head and galley sinks
Salt-water foot pump for galley sink
(2) Manual bilge pumps installed per Category 2 ORC Safety Recommendations for Offshore Sailing
Forespar flush thru-hulls: sea-water intake for galley sink & head / head discharge / sink discharge

Tanks
Fuel tank - 18 gallon polyethylene tank w/deck fill in cockpit floor, vent in transom
Fresh water tanks - 2 x 40 gallon composite tanks under saloon berths w/fill below-deck
(2 large inspection ports in lids to facilitate cleaning)

12 Volt Electrical System
(2) 12-volt x 100 Ah house batteries in plastic battery boxes
(1) 12-volt x 35 Ah engine starting battery in plastic battery box
Battery switch & cabling
DC power electrical panel

Lighting & Accessories
(6) Interior dome lights
12 volt plugs in Head Compartment / Galley / Chart Table
Hella Naviled P&S bow lights fitted to bow pulpit
Hella LED stern light

Mechanical
Yanmar 3YM20C 29HP w/ SD 20 saildrive rotated 180°
80 AMP alternator
Martec Mk-3 2-blade folding propeller
Racor water separator filter system
Vetus raw water strainer
Yanmar engine panel installed below
Vetus waterlock
Single lever engine controls & stop cable in cockpit
Fiberglass exhaust piping

Exterior Finish / Paint
Topsides painted with standard color Awlgrip
Bottom painted with US paint 545 white epoxy primer
Molded non-skid pattern - gelcoat surface for durability and ease of maintenance

Miscellaneous Options
Removable panels and cushions to provide P&S double berths aft
HARKEN Unit 1.5 Jib Furling
Bright-finished carbon tiller
Battery Charger / Inverter
AC Shore Power Deck Plug / AC Power Control Panel
(3) AC Receptacles
Carbon fiber twill finish on interior components
Carbon twill cabin sole with smooth treadmaster nonskid "planks"
Kelp cutter installed on leading edge keel fin.
Bottom sprayed with anti-fouling
Contrasting color non-skid on deck
Boot and/or cove stripes to buyer?s specification
Inspection windows in hull for propeller & rudder
Shipping cradle w/ keel bed & removable legs to lower height for trucking/shipping

NOVIS Composites carbon mast with N50 rod standing rigging, boom and carbon spinnaker pole

Carbon Mast Tube Construction
Built as a full length part in female tooling. An integral mainsail luff groove flush with the aft surface of the spar. All carbon material is pre-preg with a 250F cure system. Material cure pressure is maintained at 100 psi, in an Auto-Clave. All localized doublers for heel, deck, spreaders, and headstay area are integral to the base laminate. The top of the spar is tapered during molding.

Below Deck
Local doublers to carry compression load to G-10 "rocker" plate/plug. Anodized aluminum adjustable slider plate with welded tongue to fit the rocker plate. Lugs for temporary block attachment for hoisting mainsail
Main halyard exit with Spinlock side mounted rope clutch, horn cleat below as safety. Exit hole for electronic/electrical cables with eye strap to tension Spectra tension line.

Lower Panel Detail
All halyard exits (5) have chafe protection with stainless steel rub strips
Gooseneck and vang brackets are anodized aluminum with formed saddles mechanically fastened with internal
tapping plates. Pins are 316 stainless, swiveling tack shackle, aluminum gooseneck toggle, stainless steel vang toggle
Custom stainless steel mainsail pre-feeders
Two stainless steel ring type brackets for spinnaker pole attachment with internal re-enforcement and tapping plates.

Tapered Carbon Spreaders (one set)
Molded pre-preg carbon fiber, autoclave cured. Tips to fit rod rigging with captivating end plates
Machined 17-4 stainless steel spreader bar to suit 22 degree sweep angle with milled seat for diagonal attachment. Double clevis pins with rings and plastic washers, additional carbon re-enforcement through pins.
Mast tube re-enforcement with bonded stainless steel rings to interface with anodized aluminum spreader bar bushings.

Hound Area
Internal reinforcement patch, headstay fitting to accept -12 micro-stemball in threaded seat
Anodized aluminum spectacles for guiding jib halyards, two carbon cages bonded above headstay, Ertalyte sheaves with Gar-Fil high load bearings. Bonded carbon tube for cap tang rod fitting
Single Harken 310 topping lift sheave below headstay fitting

Masthead
Pre-preg carbon frame bonded with multiple layers of load path oriented carbon unidirectional fibers, take off pin for backstay, sheave for main halyard, dead end pin for 2:1 main halyard, socket for vertical instrument wand attachment. Windex supplied with light and light gauge wire.
Two masthead spinnaker/code 0 sheave?s with internal bonded carbon cage, with aluminum chafe bars. Ertalyte sheaves with Gar-Fil high load bearings.

Electrical
Spectra tension cable with Polypropylene mesh sock to allow customer electronic wires to be protected.

Finish
Painted with Awlgrip clear with UV inhibitor. All aluminum is type 3 hard anodized. All pins and welded cover plates are stainless steel with highly polished finish.

Boom
Thin wall aluminum extrusion with custom end fittings, finish is Awlgrip black.
Outboard end with sheaves for outhaul and 1 reef, mainsheet bale.
Inboard sheaves to lead reef line and outhaul to cabin top.
Internal cascading outhaul tackle with tail length to cabin top cleat.
Stainless steel lug for vang system attachment.

Carbon Spinnaker Pole
Pre-preg carbon fiber 3 1/2" diameter, autoclave cure, clear Awlgrip finish.
End fittings are piston type with triggers, Spectra trip lines, bridles with rings for lift, downhaul.

Nitronic 50 Rod/Kevlar Standing Rigging (single spreader configuration)
All rod rigging, turnbuckles and pins for composite shroud attachment at sheerline.
Cap tang for tube with threaded connecting rod.
Kevlar backstay with poly covering.
Rod headstay with #12 Tuff Luff, connection and strop for hydraulic adjustment.
