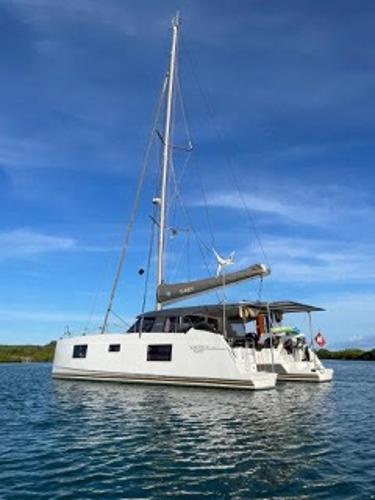

Nautitech 48

Standard equipment list

Standard sails:

• 93m2 horn mainsail, full batten, in Dacron with 3 taken reefs, Incidence Sails
• 42m2 Dacron Self Tacking Solent with UV Protection Strip, Incidence Sails
• A wide range of sails is available in the catalogue to satisfy the various sailing programs.
• 2x HARKEN PERFORMA 60.2ST manual winches and two 50.2ST 2-speed manual winches
• (electric upgrade optional) are distributed in the cockpit and on the rear beam to access the entire
• maneuvers. Two winch handles are provided with their case in the cockpit.
• Grey lazy bag with central zipper removable and lazy-jack adjustable on each side of the boom.

Electronics:

Desk/chart table facing the way is provided with plenty of storage and a comfortable

ottoman-type seat. It includes standard navigation equipment such as 12’ chart plotter, VHF, radio autopilot

control as well as the Apollo ra-770 Fusion Marine Entertainment System and various instruments related to the selected equipment.

STB Helm:

• Engine throttle

• 9’’ chart plotter Raymarine

• Multi-Function Display Raymarine

• Autopilot control console Raymarine

PortHelm :

• 9’’ chart plotter Raymarine

• Multi-Function Display Raymarine

• Autopilot control console Raymarine

• Compass

Propulsion:

• 2 engines 60cv Volvo Penta Sail drive (option 75cv) avec alternateurs 115Ah

• 2 folding aluminum tripal propellers

• 2 diesel 300 L tanks with fuel gauge on chart table screen

• 2 fiberglass/foam sandwich with stainless steel shaft

• Emergency tiller

• Engine compartment insulate with double density sound proofing foam

• Anti-immersion bulkhead upstream of the engine, passage of cables and ducts filled by addition of seals

in accordance with the standard

Plumbing:

• Black Water: 2 x 63L Aluminum Tank, Gauge with Chart Table Display. Composite

Grommet.

• Grey water: recovery under the floor (bottom of the hull)

• Fresh water: 2 x 300L tank with 2 level probes, gauge with display at the chart table. Valve accessible in

the starboard forward locker with hose protection sheath. Brass grommet.

• Pressurized water system with 5L expansion tank located on starboard under floorboard at mast bulkhead

• 60L water heater with resistance of 1200W in 110V and 500W in 230V located in the port engine

compartment. Electric and manual bilge pump in each hull.

• Electric and manual bilge pump in each engine compartment

• Electric fresh water toilet

Electricity:

• 220V panel board on starboard hull corridor closet

• 12V panel board are located portside under the bed in the aft cabin, and starboard on the engine

bulkhead

• 2 x 12 V/ 95 Ah AGM engine batteries (starboard/port) + Cristec 16A charger

• 6 service batteries AGM (total 6 x 140Ah)

• Victron Multiplus: 3KW converter - 120A charger – 230V or 110V

• Dock socket 32A/ 230V (or 50A -110V)

• Galvanic insulator plate in the starboard engine room

• 230V AC + USB socket in each cabin + USB port in the cabins integrated into the

reading light

• 230V AC + USB socket in the saloon

Saloon/Galley:

Saloon and cockpit are designed as a single living space offering distinct and complementary

functions where stand the large dining table, is directly connected to the large galley which

occupies the entire starboard space of the saloon with:

• Multiple closet, drawers and storage

• Storage space for glasses and wine bottles

• Large kitchen worktops in solid surface resin, two sinks integrated

• 3-burner gas hobs, white glass finish

• Separate gas oven

• Double drawer stainless steel refrigerator, 144L to starboard

• Top loading cooling box

• Bin

Cabins:

Owner suite located on the port side boasts a large dressing area with  lighted wardrobes and drawers, a modular space in desk. The suite has a large bathroom area with separate large shower, double handwash basins and a separate head.

Guests cabins are on starboard side with separate shower and head. Forward cabin can be equipped as utility or flex room. Fresh water electric heads in both sides.

Extra equipment

LIFESTYLE PACK;

• Full cockpit enclosure with doors (black Sunbrella)
• External sun shades (black Soltis) for saloon windscreen with opening
• Protection cover for deck hatches
• Multifunction cockpit table in natural wood
• Saloon blinds
• Salon dining table convertible into lounge area (electrical feet, black anodized finish - incl. cushion)
• Fans 12V (1 per cabin / 2 in saloon)
• Indirect lighting in saloon
• Courtesy LED lights in cockpit and aft deck
• Comfort mattress in owner cabin
• Set of custom bedding for owner cabin including pillows and duvet
• Set of 6 bathroom towels – white with Nautitech Manta Ray embroidery (3 sizes)
• Premium Table Set (2 x magnetic glasses with NAUTITECH logo + magnetic tray + 2IN1 magnetic bottle holder/bread basket (leather effect), 2 x magnetic nano-gel pads)

• 2 x 3-blade folding propellers for 60hp engine, bronze
• Electrical winch HARKEN 60.2 PERFORMA in cockpit Starboard (Main halyard, solent sheet, Reef 1 & 3)
• TEAK in cockpit and aft platforms
• Full cockpit enclosure with doors (black Sunbrella)
• External sun shades (black Soltis) for saloon windscreen with opening
• Bimini on helmstation (black Sunbrella & anodized black finish)
• Helmseat protection cover (black Sunbrella)
• Cockpit table in natural wood instead of the GRP cockpit table
• Freshwater deck wash in the aft cockpit
• Comfort mattress for aft cabin (1 included in the lifestyle pack)
• Fixed saloon table 6 pax (instead of the standard)
• Electrical sea water pump in galley
• Microwave oven 220V
• Fans 12V (1 per cabin / 2 in saloon)
• Indirect lighting in saloon
• Courtesy LED lights in cockpit and aft deck
• Two LED on spreader lights
• Camera on the mast RAYMARINE CAM300
• Upgrade to 45 kg ULTRA MARINE anchor
